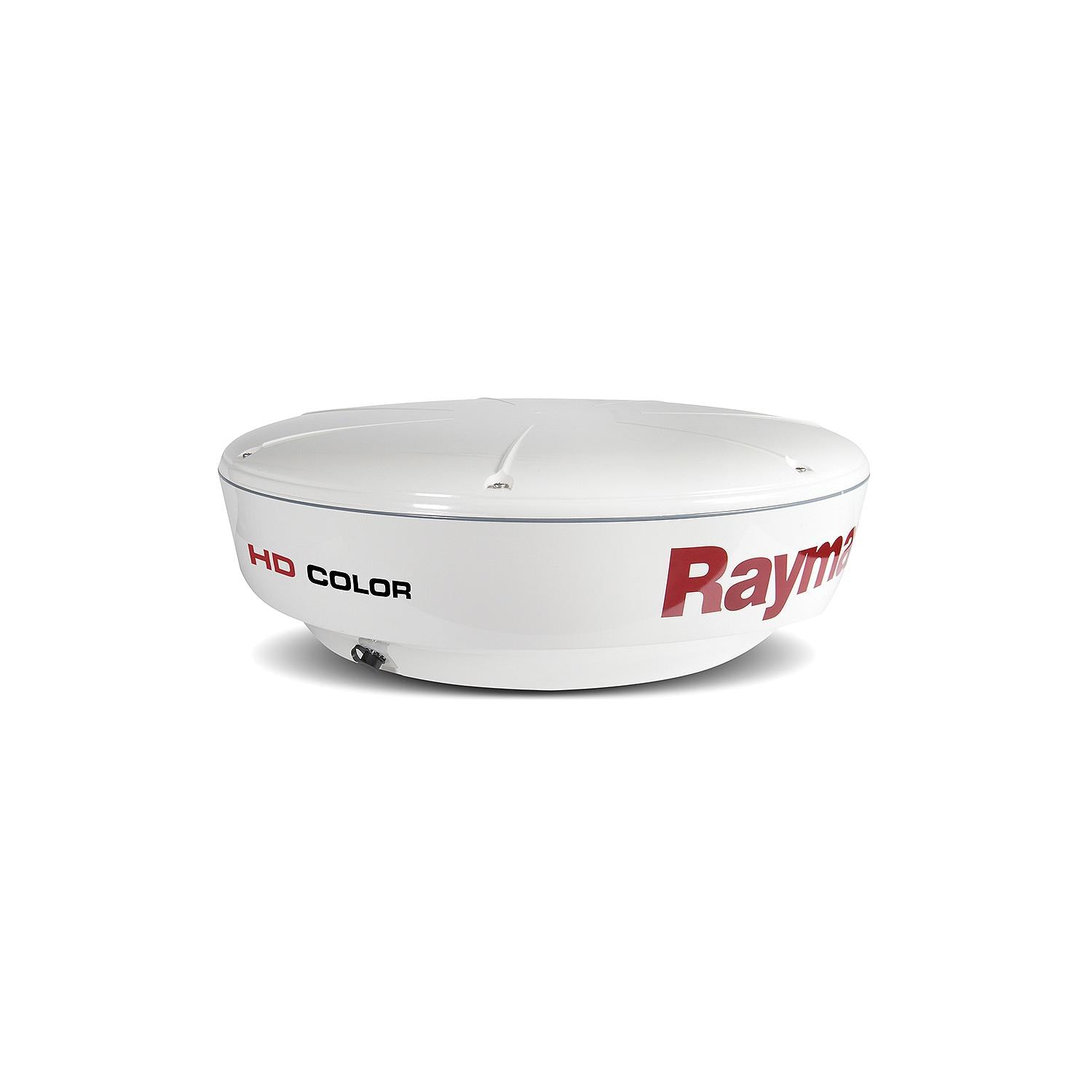

Raymarine T70169 24" HD Color Radome Scanner w/10m Cable

Compatible with the following Multifunction Displays: aSeries; c Series; e Series; NEW eS Series; gS Series; C Series Widescreen; E Series Widescreen; G Series.

Features

• Networking: SeaTalk^HS
• Peak Power Output (kW): 4.0 kW (nominal)
• Antenna Type: Patch Array
• Beam Width (Nominal): 4.9° horizontal, 25° vertical
• Polarization: Horizontal
• Rotation Rate: Range less than 3 miles – 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected) | Range greater than 3 miles - 24 RPM (nominal)
• Power Consumption: 60 W (25 W Standby)
• Maximum Range Scale: 48 nm
• IF Frequency: 70 MHz (nominal)
• Transmitting Frequency: 9405 +/– 25 MHz
• Transmitter: Solid-state modulator driving Magnetron
• Standby Mode: Magnetron heater and control left on, all other services off
• Duplexer: Circulator
• CE Approval: Conforms to 1999/5/EC
• FCC Approval: Conforms to 47CFR Part 2 and Part 80
